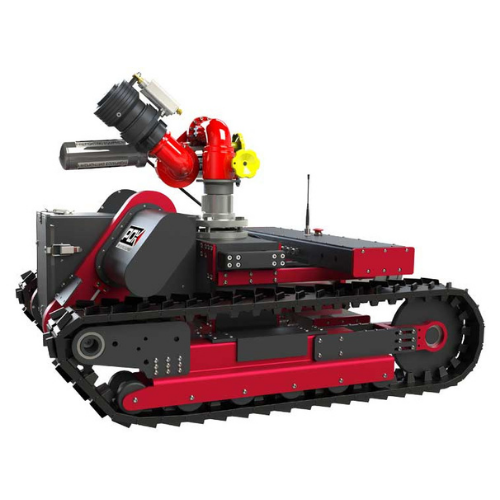

JUPITER Fire Fighting Robot

Specification Overview:
Dimensions (L x l x H)1240mm * 876mm * 960mm
Tare weight260 Kg
Maximum weight310 Kg
Payload340 Kg
Speed2,6 Km/h (regardless of the load)
Obstacle clearance265 mm
Up and down slope31°
Tilting angle28°
Stopping distance0 m (whatever the load)
Turning radius770 mm
Deviation in a straight directionless than 1°
Anticorrosion treatmentAnodised aluminium alloy
Duration2 to 4 hours (1 or 2 batteries)
Radio rangegreater than 200 m in free field conditions
WaterproofingIP66
CameraStainless steel Waterproof camera 316L (50m) 976 x 582 pixels sensor’s (Sony Super HAD II sensor)
Spot lightLED long range projectors 1500 LM, IP67

Description

Features

  • The complete unit is designed, constructed & assembled by original equipment manufacturer, POK SAS
  • Fitted with  the monitor @2000 LPM  operated by wireless remote control with display.
  • Fire Fighting robot comes along with inbuilt camera, LED Lights and real time display.
  • Ability to operate in confined spaces
  • Reverse and 360° swivel functionalities
  • State-of the-art maneuverability due to its progressive speed control
  • Low gravity centre for better grip on all ground types
  • Fire Fighting robot has the ability to clear stairways or obstacles
  • Combined remote control for the monitor and the robot with single operator mode
  • 50m LED spotlight made in aluminum(included)
  • Fitted with a high-resolution night operating LED camera with a 10m range in total darkness. Camera offers great image stability due to digital video transmission
  • Fire Fighting robot is fully submersible
  • Can be equipped with a 60m DN65 hose
  • Extra battery 48W 60 amp/hour (included)
  • Transport case for the control system (included)

Applications/Solutions

  • The deployment of the fire fighting robot lower the ambient temperature very fast to enable a quicker & safer extinguishing of the fire for more efficient firefighting service.
  • Designed to fight fire effectively as close as possible to the source, this remote-controlled system allows fire brigades to operate in complete safety and with high efficiency. Very useful in the fire emergencies where fire fighter can’t go near to fire spot due to high ambient heat.
  • Ideal for use in tunnel fires and outdoor fires, including at critical infrastructure installations, such as refineries, sensitive production sites, ports and airports, the Jupiter fire fighting robot can also be used to fight fires in confined environments, such as nuclear sites and buildings.
