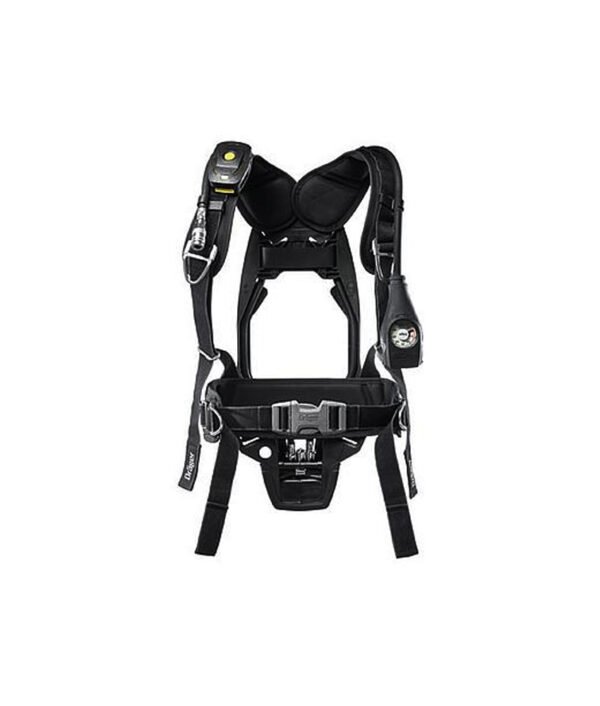

Dräger PSS 4000 Breathing Apparatus
| Weight Kg (Backplate and Harness) | 3kg / 3.38 kg with BG 1500 |
| Input Pressure (bar) | 0-300 |
| Nominal 1st Stage output pressure | 7.5 bar |
| 1st stage output flow (lit/min) | 1000 |
| LDV output flow (l/min) | Greater than 400 |
| Whistle activation pressure (bar) | 50-60 |
| Whistle Sound Level (dBA) | Greater than 90 and 102-112 with BG 1500 |
| Approvals | Approvals EN 137:2006, ATEX 94/9/EC (I M1/II 1GD EEx ia I/IIC T4) (Ta = -30 °C to +60 °C) (Type 2) |
Hi, I have a question about Dräger PSS 4000 Breathing Apparatus
Description
The Dräger PSS® 4000 one of the lightest professional self-contained breathing apparatus for fire fighters. Combining comfort with exceptional pneumatic performance, this SCBA is designed for applications where simplicity and ease of use are crucial.Lightweight yet robust, and easy to don, the PSS® 4000 provides outstanding breathing protection.
• Light, robust and simple to use
• Enhanced carrying system
• Maximum performance harness material
• Easy to maintain and service
• Integrated hoses
• Wireless option
• Proven air supply technology
Additional information
| Brand |
Drager |
|---|
